Relays On Fuse Panel B -Sb-, From October 2020

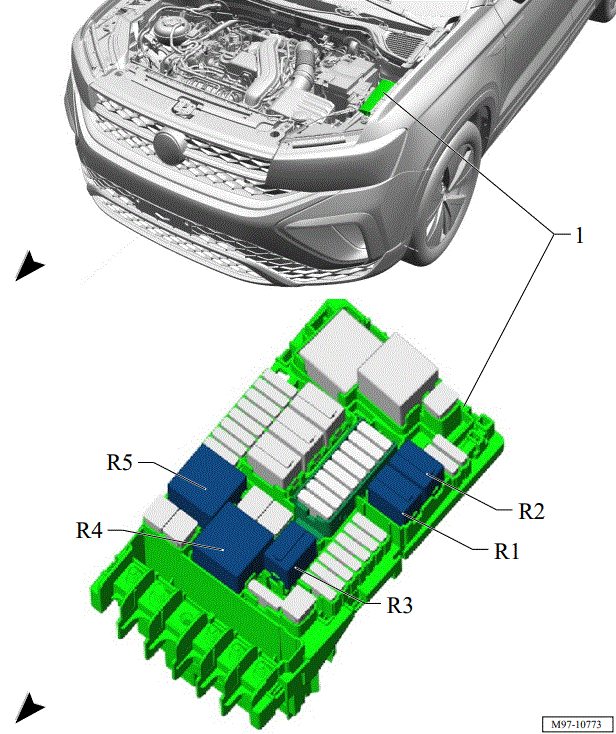

G00673941

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Fuse Panel B -SB-
R1 - Starter Relay 1 -J906-
R2 - Starter Relay 2 -J907-
R3 - Horn Relay -J413-
R4 - Secondary Air Injection Pump Relay -J299-
R5 - Motronic Engine Control Module Power Supply Relay -J271-
