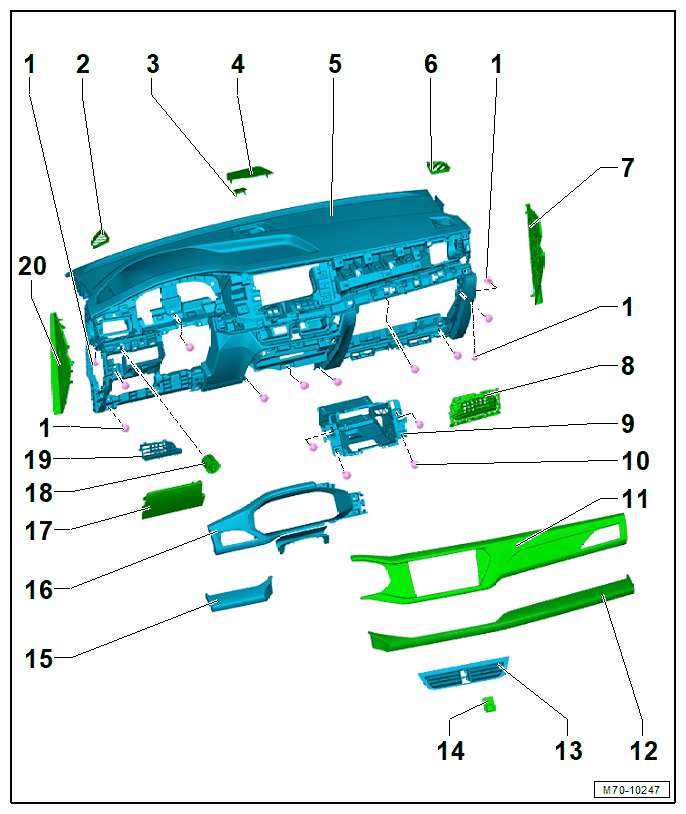

Overview - Instrument Panel
- Bolt
- Quantity: 11
- 1.5 Nm
- Defroster Vent
- On the side of the driver side
- Removing and Installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
- Sunlight Photo Sensor -G107-
- Depending on the vehicle equipment
- Removing and installing. Refer to SUNLIGHT PHOTO SENSOR -G107-, REMOVING AND INSTALLING .
- Speaker Trim
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Instrument Panel
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Defroster Vent
- On the side of the front passenger side
- Removing and Installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
- Instrument Panel Side Cover
- Front passenger side
- Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
- Outer Instrument Panel Vent
- Front passenger side
- Removing and Installing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
- Radio/Navigation System Frame
- Size and form are vehicle dependent
- Removing and Installing. Refer to RADIO/NAVIGATION SYSTEM FRAME, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 1.5 Nm
- Instrument Panel Decorative Trim
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- Instrument Panel Decorative Trim
- Front passenger side
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE .
- Center Vent
- Removing and Installing. Refer to CENTER VENT, REMOVING AND INSTALLING .
- Emergency Flasher Button -E229-
- With Front Passenger Airbag -Disabled- Indicator Lamp -K145-.
- Removing and installing. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
- Instrument Panel Decorative Trim
- Driver side
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
- Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Cover
- For the fuse box
- Rotary Light Switch -EX1-
- Removing and installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
- Outer Instrument Panel Vent
- Driver side
- Removing and Installing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
- Instrument Panel Side Cover
- Driver side
- Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
