Start System Button -E378-, Removing And Installing: Removing

-- Remove the shift cover upward from the center console. Refer to the appropriate service information or SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

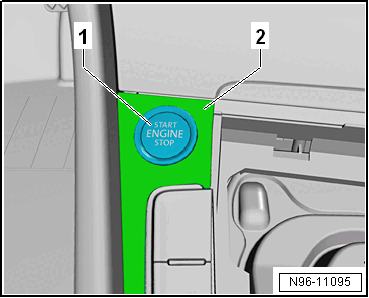

-- Push the Start System Button -E378- -1- out of the center console insert -2- from the bottom. The clips are opened at the same time.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector.

If the Start System Button -E378- cannot be removed as described, then:

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Push the Start System Button -E378- out of the center console insert from the bottom.
