Emergency Flasher Switch -Ex3-, Removing And Installing: Removing

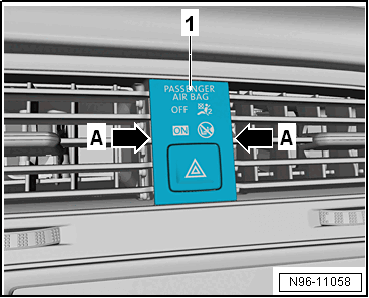

-- Grab the Front Passenger Airbag -Disabled- Indicator Lamp -K145- -1- at the side -A arrows- and pull it out of the instrument panel.

GWWN96-11058Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors.

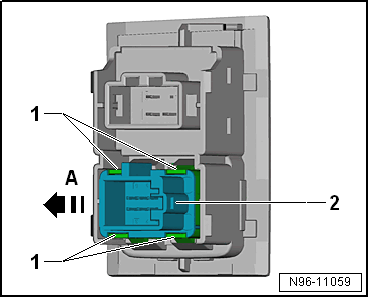

-- Loosen the catches -1-.

GWWN96-11059Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the Emergency Flasher Switch -EX3- -2- out of the Front Passenger Airbag -Disabled- Indicator Lamp -K145- in the direction of -arrow A-.
