Driving Profile Selection Control Head -E881-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

CAUTION:

Risk of damaging the component surfaces.

When positioning a prying tool, put commercially available adhesive tape over the component in the visible area.

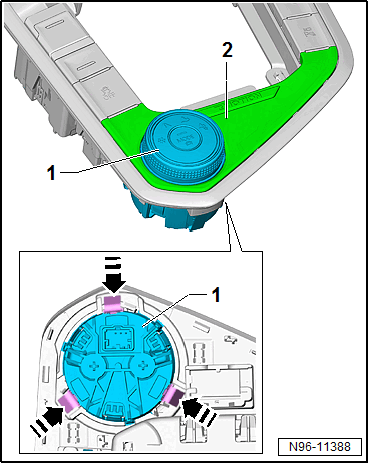

-- Unclip the trim -2- from the center console insert using the Trim Removal Wedge :3409 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers on the Driving Profile Selection Control Head -E881- -1- in the direction of -arrow-.

-- Remove the Driving Profile Selection Control Head -E881- -1- from the center console insert.
