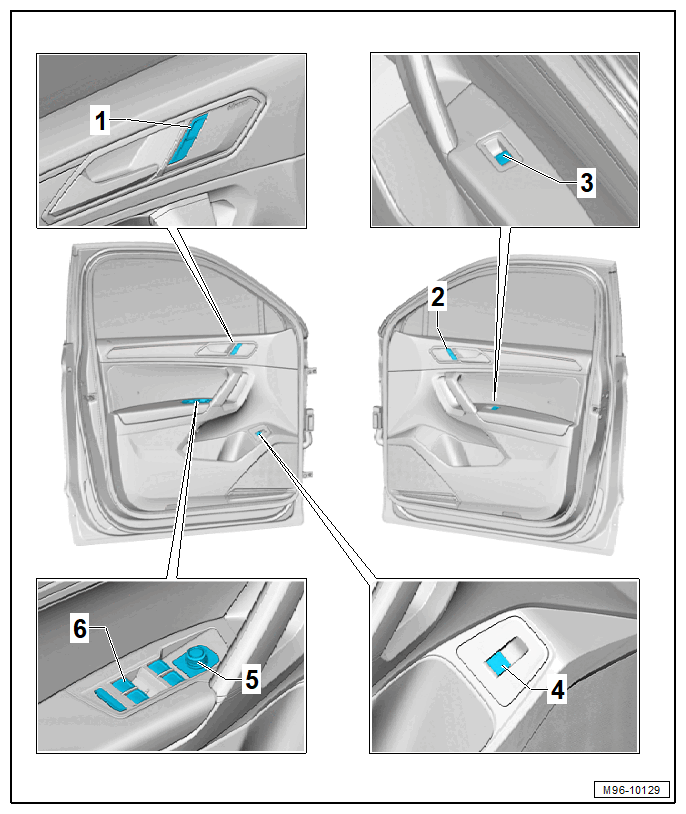

Component Location Overview - Controls In Front Doors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Driver Interior Locking Button -E308-
   • Removing and Installing. Refer to Driver/Front Passenger Interior Locking Button -E308- /Front Passenger Interior Locking Button -E309-, REMOVING AND INSTALLING .
2. Front Passenger Interior Locking Button -E309-
   • Removing and Installing. Refer to Driver/Front Passenger Interior Locking Button -E308- /Front Passenger Interior Locking Button -E309-, REMOVING AND INSTALLING .
3. Front Passenger Power Window Button -E716-
   • Removing and Installing. Refer to Front Passenger Power Window Button -E716-, REMOVING AND INSTALLING .
4. Fuel Filler Door Remote Release Switch -E204-
   • Removing and Installing. Refer to Fuel Filler Door Remote Release Switch -E204-, REMOVING AND INSTALLING .
5. Exterior Rearview Mirror Adjuster -EX11-
   • Removing and Installing. Refer to Exterior Rearview Mirror Adjuster -EX11-, REMOVING AND INSTALLING .
6. Power Window Control Head in Driver Door -E512-
   • With:
     • Driver Power Window Button -E710-
     • Front Passenger Power Window Button -E716-
     • Driver Side Rear Power Window Button -E711-
     • Passenger Side Rear Power Window Button -E713-
     • Central Window Regulator Switch in Driver Door - E189-
   • Removing and Installing. Refer to Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING .

Not Illustrated:

• Driver Door Contact Switch -F2- and Front Passenger Door Contact Switch -F3-. Refer to Driver Door Contact Switch -F2- /Front Passenger Door Contact Switch -F3-, REMOVING AND INSTALLING .
