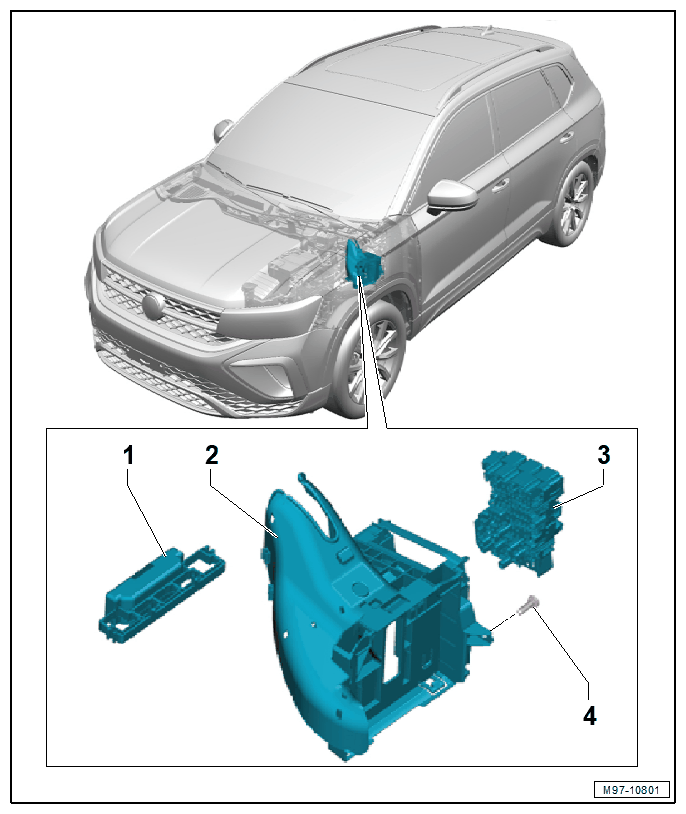

Relay Panel And Instrument Panel/A-Pillar Fuse Panel
CAUTION:
The vehicle in the illustration is only a basic outline.
- Bracket
- For the Parking Aid Control Module -J446-
- Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
- Bracket
- For the Vehicle Electrical System Control Module -J519-
- Removing and Installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Fuse Panel C -SC-
- Removing and Installing. Refer to RELAY AND FUSE PANEL BEHIND INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
- Quantity: 3
