Relay And Fuse Panel 3 -SR3-, From October 2020

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

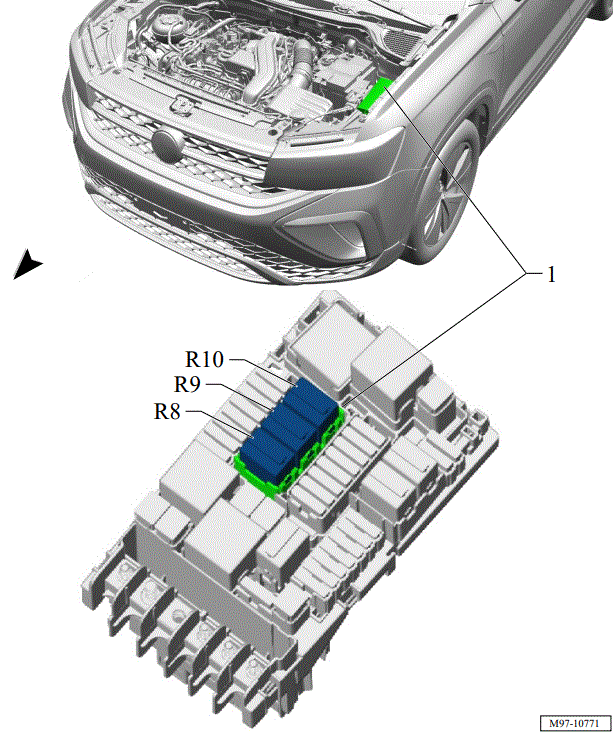

1. 1 -  Relay and Fuse Panel 3 -SR3-
2. R8 -  Not used
3. R9 -  Wiper motor relay 1 -J368-
4. R10 -  Wiper motor relay 2 -J369-
