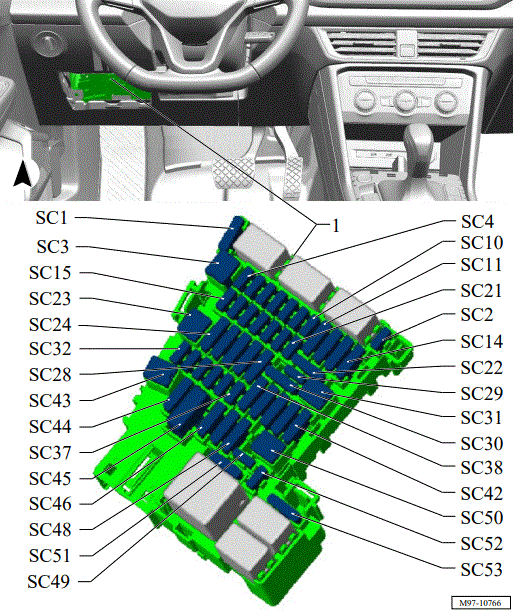

Fuse Panel C -SC- Component Location, From October 2020

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. 1 - Fuse Panel C -SC-
2. Fuse colors, for the J-case fuse:
   • 50 A - Red
   • 40 A - Green
   • 30 A - Pink
3. Fuse colors, for the ATO flat fuse:
   • 40 A - Orange
   • 30 A - Light Green
   • 25 A - Natural (White)
   • 20 A - Yellow
   • 15 A - Light Blue
   • 10 A - Red
   • 7.5 A - Brown
   • 5 A - Light Brown
   • 1 A - Black
4. Fuse colors, for mini fuse:
   • 20 A - Yellow
   • 15 A - Light Blue
   • 10 A - Red
   • 7.5 A - Brown
   • 5 A - Light Brown
   • 1 A - Black
