Seat Heating Element, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the cover and bench seat cushion. Refer to COVER AND CUSHION, SEPARATING .

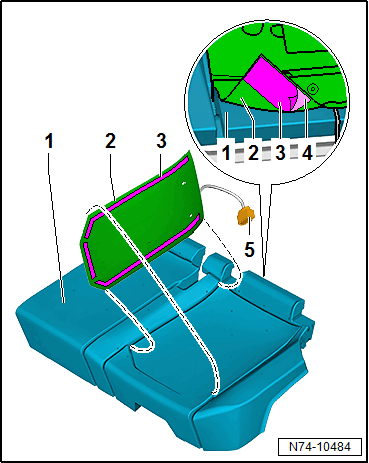

-- Loosen the wire -5- on the seat frame.

-- Disconnect the wire -5- directly from the old heating element -2-.

TIP:

The old heating elements remain on the cushion -1- and will be covered over by the new heating element.
