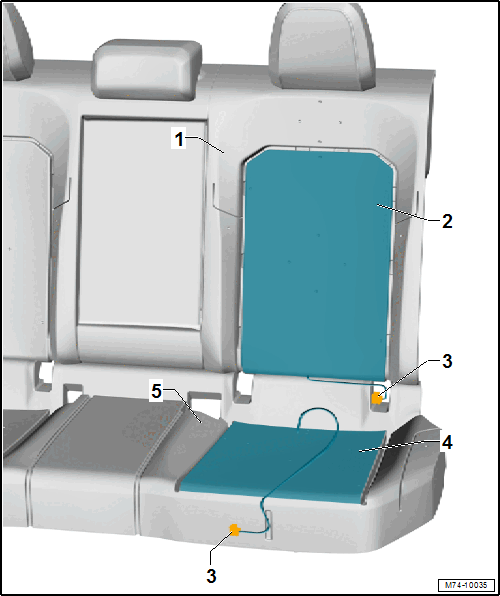

Overview - Seat Heating Element

The following describes the removing and installing on the left side of the vehicle. Removing and installing on the right side is similar.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Backrest Cushion
2. Rear Seat Backrest Heating Element
   • Left Rear Backrest Heating Element -Z11-
   • Right Rear Backrest Heating Element -Z13-
   • Removing and Installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
3. Wire
4. Bench Seat Heating Element
   • Left Rear Bench Seat Heating Element -Z10-
   • Right Rear Bench Seat Heating Element -Z12-
   • Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
5. Seat Cushion
