Overview - Cover And Cushion, Rear Seat Backrest Without A Pass-Through

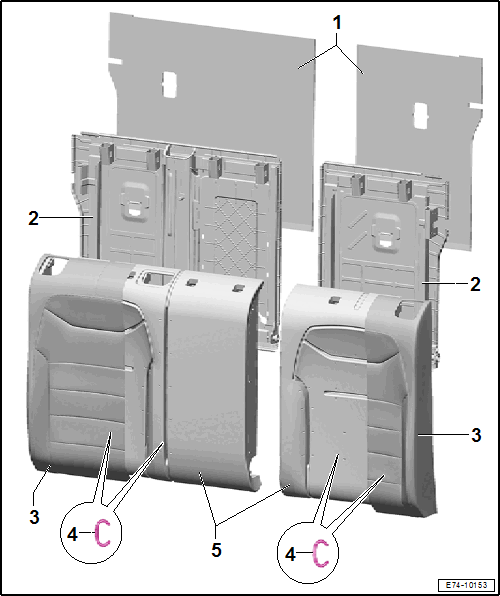

Fig 1: Exploded View Of Cover And Cushion, Rear Seat Backrest Without A Pass-Through

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Rear Panel Trim Panel
2. Backrest Frame
   • Backrest Frame, Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
3. Backrest Cover
   • Different equipment levels
   • Cover with Cushion, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .
   • Cover and Cushion, Separating. Refer to REAR SEAT BACKREST COVER AND CUSHION, SEPARATING .
4. Upholstery Clip
   • For attaching the backrest cover to the backrest cushion
   • Backrest cover 2/3: quantity 13
   • Backrest cover 1/3: quantity 9
   • Replace after removal
5. Backrest Cushion
   • Different equipment levels
   • Cover with Cushion, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .
   • Cover and Cushion, Separating. Refer to REAR SEAT BACKREST COVER AND CUSHION, SEPARATING .
