Overview - Bench Seat Cover And Cushion

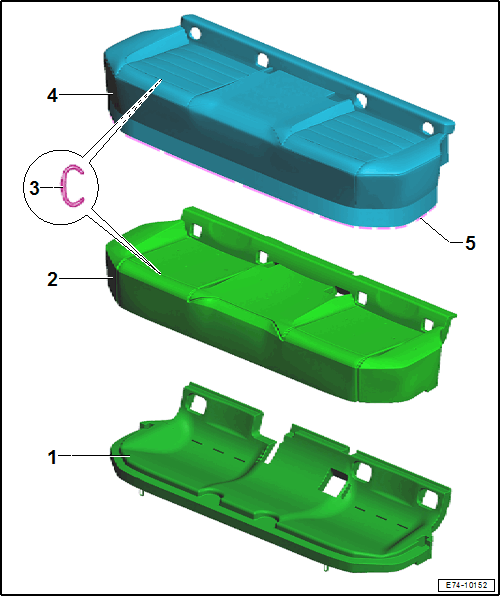

Fig 1: Exploded View Of Bench Seat Cover And Cushion

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Pan
- Removing and Installing. Refer to BENCH SEAT COVER AND PADDING, REMOVING AND INSTALLING .
Seat Cushion
- Different equipment levels
- Seat cover and cushion, removing and installing. Refer to BENCH SEAT COVER AND PADDING, REMOVING AND INSTALLING .
- Disconnect the seat cover and seat cushion. Refer to BENCH SEAT COVER AND CUSHION, SEPARATING .
Upholstery Clip
- Fabric cover: quantity 25
- For attachment of the seat cover to the seat cushion
- Replace after removal
Seat Cover
- Different equipment levels
- Seat cover and cushion, removing and installing. Refer to BENCH SEAT COVER AND PADDING, REMOVING AND INSTALLING .
- Disconnect the seat cover and seat cushion. Refer to BENCH SEAT COVER AND CUSHION, SEPARATING .
Molding
- Sewn into cover
- For engaging the seat cover in the seat pan
