Rear Seat Backrest Cover And Cushion, Separating: Installing

Install in the reverse order of removal while noting the following:

• Replace all upholstery clips and install at the same location.

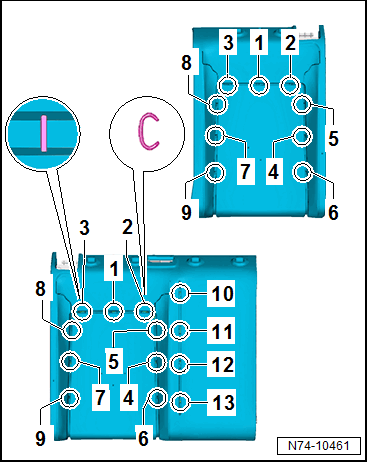

Cover for Rear Seat Backrest without Pass-Through

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the clips in the sequence -1 through 13- for the 2/3 rear seat backrest.

-- Secure the clips in the sequence -1 through 9- for the 1/3 rear seat backrest.

-- Make sure the seat cover is not wrinkled.

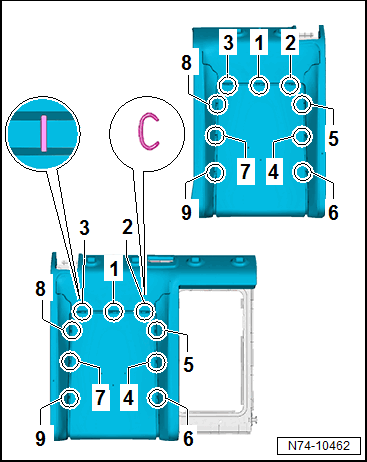

Cover for Rear Seat Backrest with Pass-Through

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the clips in the sequence -1 through 9- for the 2/3 rear seat backrest.

-- Secure the clips in the sequence -1 through 9- for the 1/3 rear seat backrest.

-- Make sure the seat cover is not wrinkled.
