Bench Seat Cover And Padding, Removing And Installing: Removing

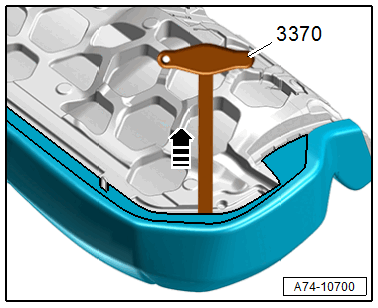

GWWA74-10700Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

CAUTION:

Risk of damaging the seat covers.

The seat cover can rip.

- Do not pull on the seat cover.

-- Pry out the clamping strips from the bracket along the seat pan -arrow- using the : 3370  .

-- Remove the cover and cushion from the seat pan.
