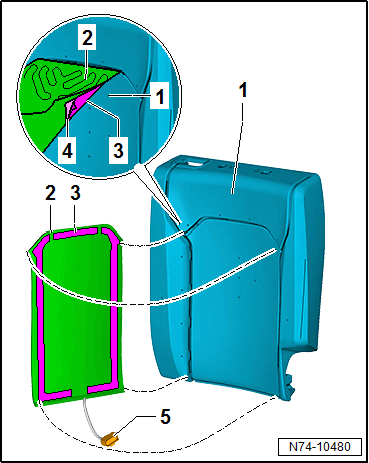

Backrest Heating Element, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the cover and cushion for the rear seat backrest. Refer to REAR SEAT BACKREST COVER AND CUSHION, SEPARATING .

-- Loosen the wire -5- on the seat frame.

-- Disconnect the wire -5- directly from the old heating element -2-.

TIP:

The old heating element remains on the backrest cushion -2- and the new heating element is bonded over it.
