Overview - Instrument Cluster

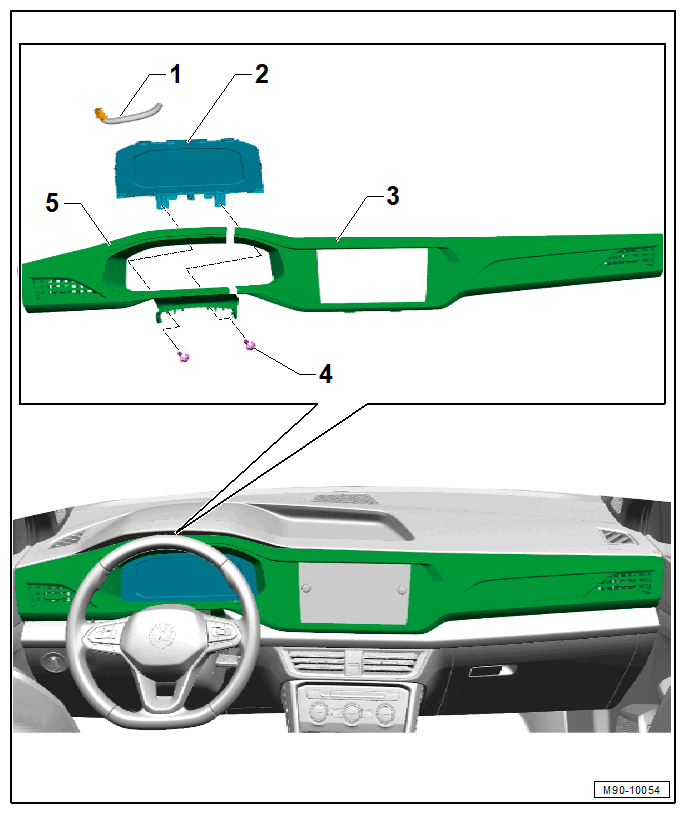

Fig 1: Exploded View Of Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector
Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Instrument Panel Decorative Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Bolts
- 1.5 Nm
- Quantity: 2
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
