Overview - Horn (8Y1)

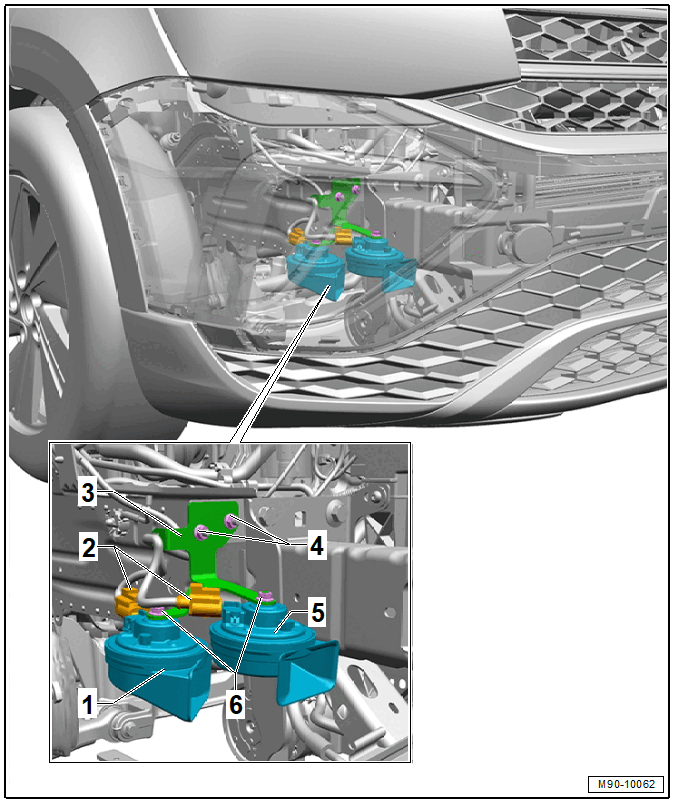

GWWM90-10062

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Low Tone Horn -H7-
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Connector
Bracket
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Nut
- 9 Nm
High Tone Horn -H2-
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Nut
- 18 Nm
