Left Horn -H33-, REMOVING AND INSTALLING: Removing

-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .

-- Remove the bolt -2-.

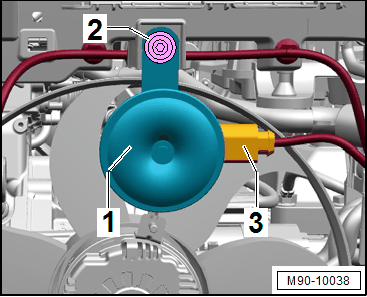

GWWM90-10038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left Horn -H33- -1-.

-- Release and disconnect the connector -3-.
