Luggage Compartment Lamp -W3-, Removing And Installing: Removing

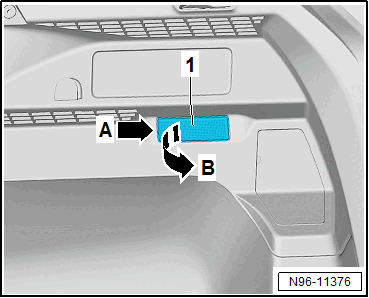

-- Press in the front retaining tab on the Luggage Compartment Lamp -W3- -1- using a flat-head screwdriver -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, pivot the Luggage Compartment Lamp -W3- -1- out of the luggage compartment side trim panel in the direction of -arrow B-.

-- Release and disconnect the connector from the Luggage Compartment Lamp -W3- -1-.

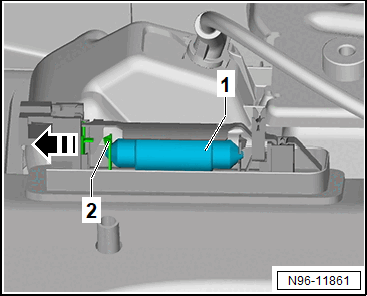

-- Push the contact plate -2- for the lamp in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tubular bulb -1- from the bulb socket.
