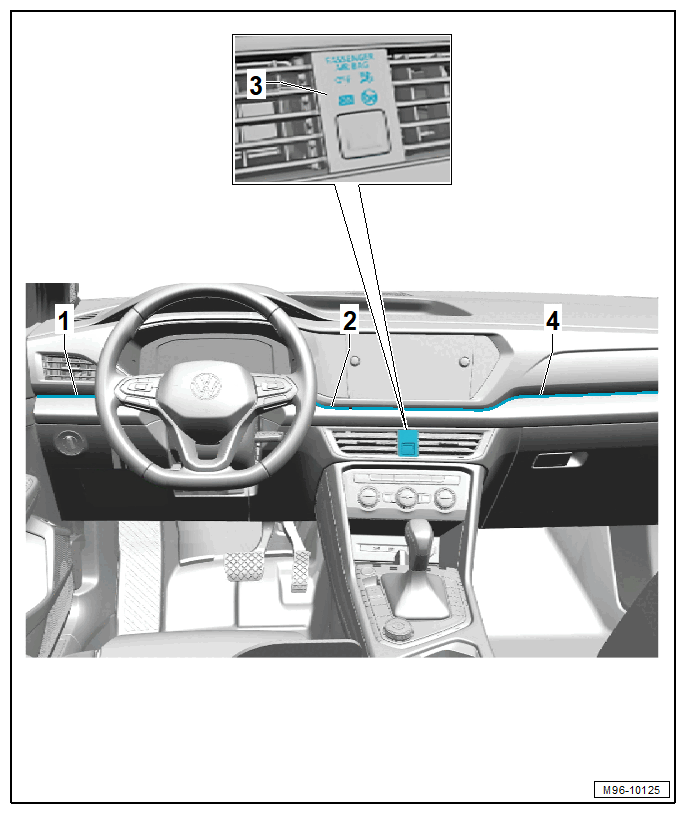

Component Location Overview - Instrument Panel Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Panel Contour Illumination Lamp 1 -L243-
   • Refer to INSTRUMENT PANEL CONTOUR ILLUMINATION LAMPS -L243- / -L244- / -L245-, REMOVING AND INSTALLING
2. Instrument Panel Contour Illumination Lamp 2 -L244-
   • Refer to INSTRUMENT PANEL CONTOUR ILLUMINATION LAMPS -L243- / -L244- / -L245-, REMOVING AND INSTALLING
3. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • The Front Passenger Airbag -Disabled- Indicator Lamp -K145- is removed together with the Emergency Flasher Switch -EX3-. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
4. Instrument Panel Contour Illumination Lamp 3 -L245-
   • Refer to INSTRUMENT PANEL CONTOUR ILLUMINATION LAMPS -L243- / -L244- / -L245-, REMOVING AND INSTALLING
