Wheel, Installing

Installing

-- Clean the contact surface of the rims to the wheel bearing unit.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the contact surface to the rim.

-- Raise the vehicle.

-- Position the wheel.

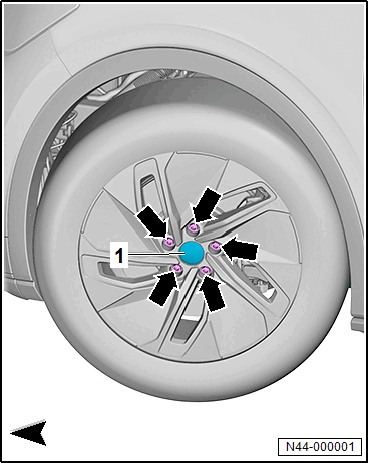

-- Insert the wheel bolts -arrows-.

Vehicles with Wheel Bolt Lock

-- Install the wheel bolt lock.

Continuation for all vehicles

-- Lower the vehicle.

-- Tighten the wheel bolts -arrows-.

Vehicles with Wheel Hubcap

-- Install the wheel hubcap.

Vehicles with Wheel Bolt Cap

-- Install the wheel bolt cap.

Continuation for all vehicles

Tightening Specifications

• Refer to WHEEL BOLTS TIGHTENING SPECIFICATION .
