Tie Rod End, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

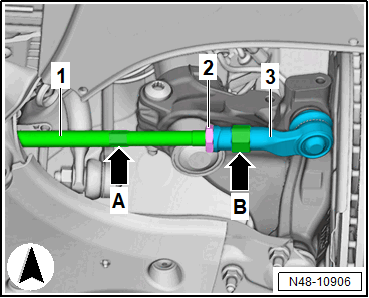

-- Install the tie rod end -3- up to the previously made marking on the tie rod -1- and secure with the nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the tie rod end -3- into the wheel bearing housing.

-- Tighten the tie rod end -3- with the new nut.

-- Perform the axle alignment. Refer to Axle Alignment .
