Steering Gear, Servicing: Removing
The Power Steering Control Module -J500- is installed in the steering gear.
The steering gear and the Power Steering Control Module -J500- will be called steering gear in the information that follows.
-- Remove the steering gear. Refer to Steering Gear, Removing and Installing .

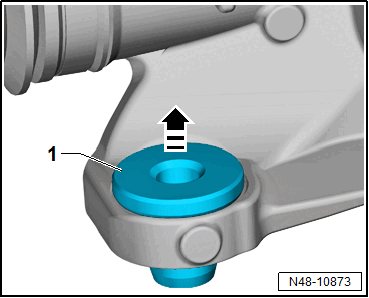

-- Drive out the threaded bushing -1- in the -direction of the arrow- using a hammer.
