Passenger Occupant Detection System Control Module J706, Removing And Installing: Removing

-- Refer to Front Seat, Mounting on Fixture for Seat Repair .

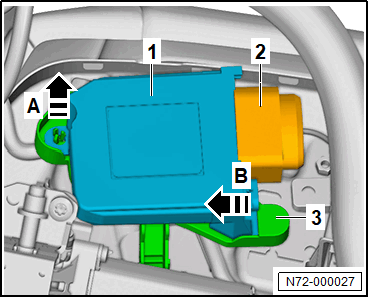

-- Unclip the wire from the bracket -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Pull out the locking pin from the bracket -3- entirely.

-- Unclip the occupant detection control module -1- in the direction of -arrow A-.

-- Remove the occupant detection control module -1- in the direction of -arrow B-.
