Component Location Overview - Seat Occupant Detection System

The overview shows the front passenger side as an example.

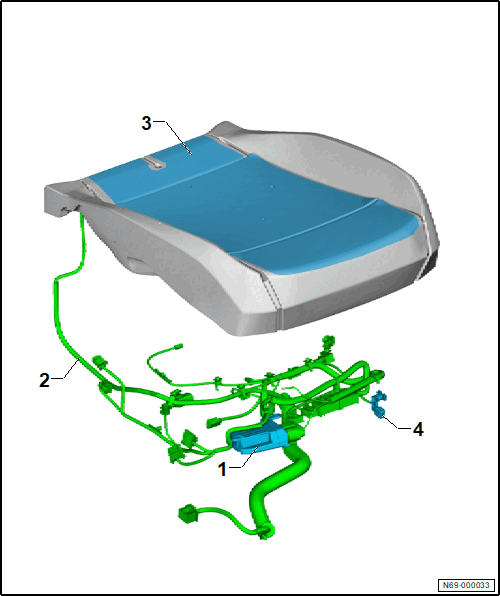

Fig 1: Exploded View Of Seat Occupant Detection System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Occupant Detection System Control Module -J706-
- Refer to Passenger Occupant Detection System Control Module J706, Removing and Installing .
Seat Frame Wiring Harness
- Depending on equipment/version
- Refer to SEAT FRAME WIRING HARNESS, REMOVING AND INSTALLING
Right Front Seat Heater -ZX13-
- Refer to Overview - Seat Heating Element .
- Refer to LEFT/RIGHT FRONT SEAT BELT NX10/NX11, REMOVING AND INSTALLING .
Front Passenger Seat Position Sensor -G554-
- Model-dependent
