Left/Right Front Seat Belt NX10/NX11, Removing And Installing: Removing

-- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the front sill panel. Refer to Front Sill Panel, Removing and Installing .

-- Remove the rear sill panel. Refer to Rear Sill Panel, Removing and Installing .

-- Remove the B-pillar upper trim panel. Refer to B-Pillar Upper Trim Panel, Removing and Installing .

-- Remove the B-pillar lower trim panel. Refer to B-Pillar Lower Trim Panel, Removing and Installing .

-- Remove the front belt end fitting. Refer to Front Belt End Fitting, Removing and Installing  .

-- Remove the front seat belt guide. Refer to Front Seat Belt Guide, Removing and Installing  .

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seat belt relay -2- with the seat belt webbing.

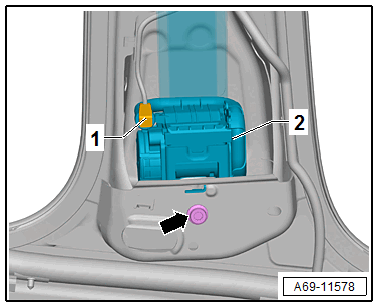

Base Version:

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow-.

-- Remove the front three-point seat belt -2-.

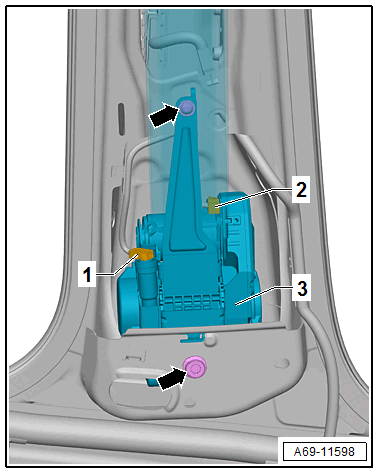

Reversible Power Version:

-- Disconnect the connectors -1 and 2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the expanding rivet -upper arrow-.

-- Remove the bolt -lower arrow-.

-- Remove the front three-point seat belt -3-.

Continuation for All Vehicles
