Front Seat Belt Guide, Removing And Installing: Removing

-- Remove the B-pillar upper trim panel. Refer to B-Pillar Upper Trim Panel, Removing and Installing .

-- Remove the B-pillar lower trim panel. Refer to B-Pillar Lower Trim Panel, Removing and Installing .

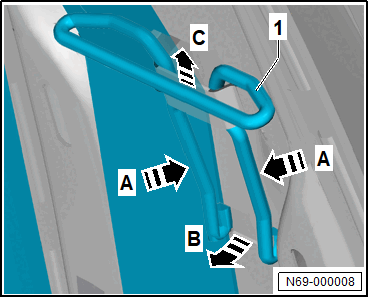

-- Press the front seat belt guide -1- together in the direction of -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, pull the front seat belt guide -1- out in the direction of -arrow B-.

-- With the brackets pressed together in direction of -A arrows-, pull the front seat belt guide -1- out in the direction of -arrow C-.

-- Guide the seat belt webbing out and remove the front seat belt guide -1-.
