Seat Occupant Detection Sensors G177/G178/G1010, Removing And Installing: Removing

Remove the Rear Seat Occupant Detection Sensors G177/G178

The Driver Side Rear Seat Occupant Detection Sensor -G177- and Passenger Side Rear Seat Occupant Detection Sensor -G178- will be called the seat occupant detection sensors in the information that follows.

-- Remove the rear bench seat cover and cushion. Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .

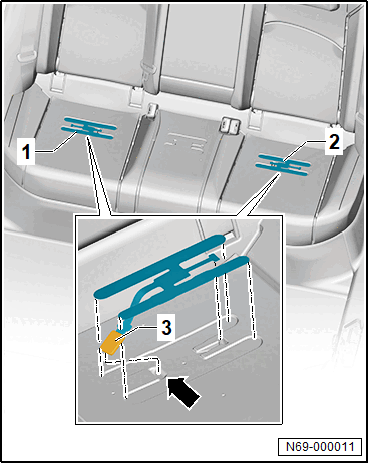

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the wire through the opening -arrow-.

-- Remove the rear seat occupant detection sensor -1 or 2-.

Rear Center Seat Occupant Detection Sensor G1010, Removing

-- Remove the rear bench seat cover and cushion. Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .

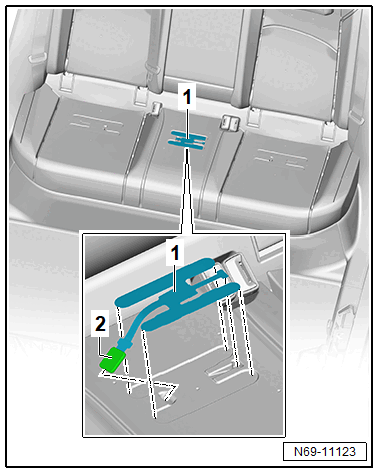

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the wire through the opening.

-- Remove the Rear Center Seat Occupant Detection Sensor -G1010- -1-.
