Front Passenger Airbag Deactivation Key Switch E224, Removing And Installing: Removing

-- Remove the front passenger side instrument panel side cover. Refer to Instrument Panel Side Cover, Removing and Installing .

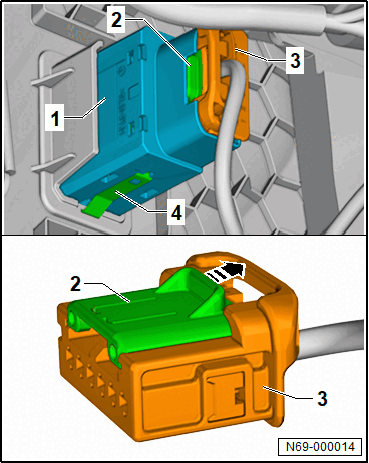

-- Release the connector lock -2- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3-.

-- Press the springs -4- together.

Tip

Pay attention to the position of the key switch.

-- Press the key switch -1- out.
