Airbag Connector, Replacing: Removing

The airbag unit with Driver Airbag Igniter -N95- will be called the airbag unit with igniter in the information that follows.

-- Remove the airbag unit with igniter. Refer to Airbag Unit with Driver Airbag Igniter N95, Removing and Installing  .

-- Disengage the wire at the brackets.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unpin the wire from the connector -1-.

-- Disconnect the connectors.

-- Release the connector lock -2- in the direction of -arrow-.

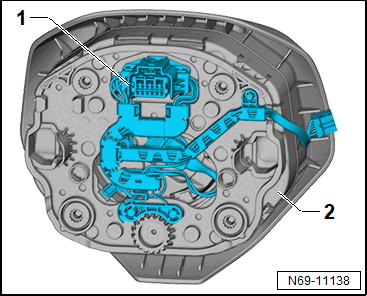

Fig 1: Disconnect Harness Connector -1-, Connector Lock -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.

-- Detach the wire.
