Overview - Rear Child Seat Anchors

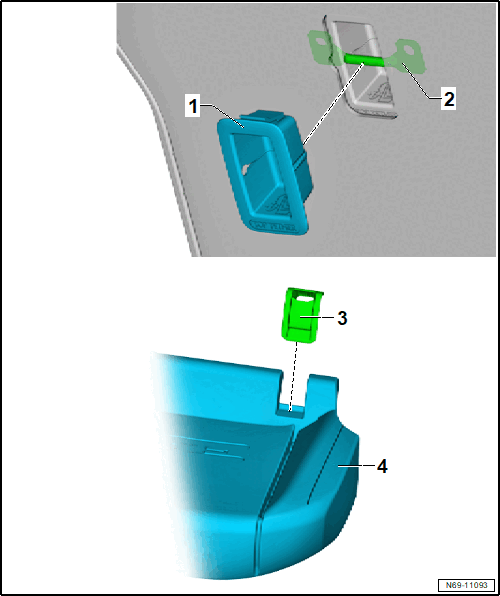

Fig 1: Exploded View Of Rear Child Seat Anchors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Seat Backrest Child Seat Anchor Cover
- Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING
- Quantity: 2
Upper Child Seat Anchor
- Cannot be replaced separately
- Quantity: 2
Bench Seat Child Seat Anchor Guide
- Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .
- Quantity: 4
Bench Seat
- Refer to Overview - Bench Seat/Single Seats .
- Refer to Bench Seat/Single Seat, Removing and Installing .
