Overview - Front Child Seat Anchors

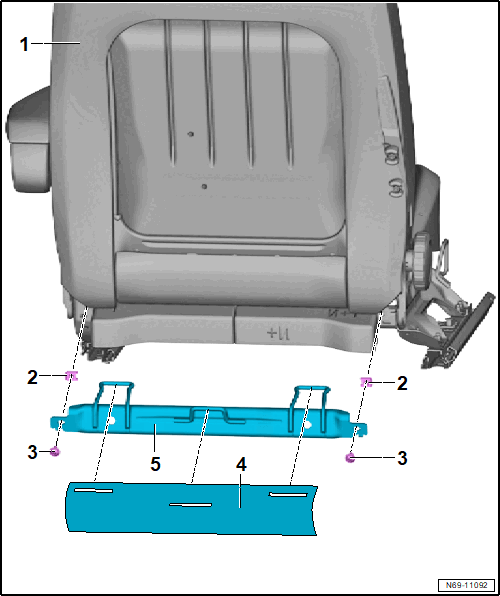

Fig 1: Exploded View Of Front Child Seat Anchors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Passenger Side Front Seat
Spring Nut
- Replace after removing
- Attached in the seat pan
- Quantity: 2
Bolt
- 8 Nm
- Replace after removing
- Quantity: 2
Top Tether Fabric Cover
Front Child Seat Anchor
- Installed at the front passenger side front seat
- Refer to Front Child Seat Anchor, Removing and Installing .
