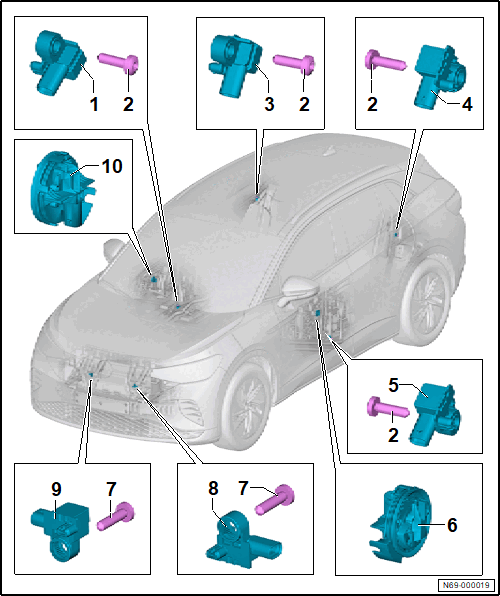

Overview - Airbag Crash Sensor
- Thorax Airbag Crash Sensor in the B-Pillar
- LHD: Thorax Airbag Crash Sensor in the Front Passenger Side B-Pillar -G1102-
- RHD: Thorax Airbag Crash Sensor in the Driver Side B-Pillar -G1101-
- Component location: behind the B-pillar lower trim panel
- Refer to Thorax Airbag Crash Sensor in the Driver/Front Passenger Side B-Pillar G1101/G1102, Removing and Installing .
- Bolt
- 8 Nm
- Rear Thorax Airbag Crash Sensor
- LHD: Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- RHD: Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: behind the rear sill panel
- Refer to Driver/Front Passenger Side Rear Thorax Airbag Crash Sensor G256/G257, Removing and Installing .
- Rear Thorax Airbag Crash Sensor
- LHD: Driver Side Rear Thorax Airbag Crash Sensor -G256-
- RHD: Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location: behind the rear sill panel
- Refer to Driver/Front Passenger Side Rear Thorax Airbag Crash Sensor G256/G257, Removing and Installing .
- Thorax Airbag Crash Sensor in the B-Pillar
- LHD: Thorax Airbag Crash Sensor in the Driver Side B-Pillar -G1101-
- RHD: Thorax Airbag Crash Sensor in the Front Passenger Side B-Pillar -G1102-
- Component location: behind the B-pillar lower trim panel
- Refer to Thorax Airbag Crash Sensor in the Driver/Front Passenger Side B-Pillar G1101/G1102, Removing and Installing .
- Driver Thorax Airbag Crash Sensor
- LHD: Driver Thorax Airbag Crash Sensor -G179-
- RHD: Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: on the door subframe
- Refer to Driver/Front Passenger Thorax Airbag Crash Sensor G179/G180, Removing and Installing .
- Bolt
- 9 Nm
- Front Airbag Crash Sensor
- LHD: Front Airbag Crash Sensor -G190-
- RHD: Passenger Side Front Airbag Crash Sensor -G284-
- Component location: on the left lock carrier support
- Refer to Front Airbag and Passenger Side Front Airbag Crash Sensor G190/G284, Removing and Installing .
- Front Airbag Crash Sensor
- LHD: Passenger Side Front Airbag Crash Sensor - G284-
- RHD: Front Airbag Crash Sensor -G190-
- Component location: on the right lock carrier support
- Refer to Front Airbag and Passenger Side Front Airbag Crash Sensor G190/G284, Removing and Installing .
- Front Passenger Thorax Airbag Crash Sensor
- LHD: Front Passenger Thorax Airbag Crash Sensor -G180-
- RHD: Driver Thorax Airbag Crash Sensor -G179-
- Component location: on the door subframe
- Refer to Driver/Front Passenger Thorax Airbag Crash Sensor G179/G180, Removing and Installing .
