Radiator Fan VX57, Removing And Installing: Removing

-- Remove the fan shroud with the Radiator Fan -VX57-. Refer to Fan Shroud with Radiator Fan, Removing and Installing  .

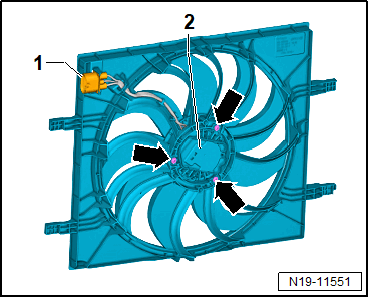

-- Loosen the wire -1- from the fan shroud.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -arrows-.

-- Remove the Radiator Fan -VX57- -2- from the fan shroud.
