Temperature Sensor G18, Removing And Installing: Removing

-- Refer to Coolant, Draining  .

-- Remove the right rear wheel. Refer to WHEEL, REMOVING .

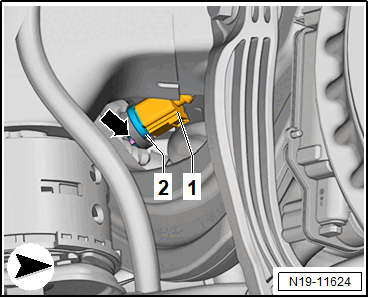

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clamp -arrow- and remove the Temperature Sensor -G18- -2-.
