Overview - Motor Coolant Temperature Sensor

Overview - Bolted Engine/Motor Coolant Temperature Sensor

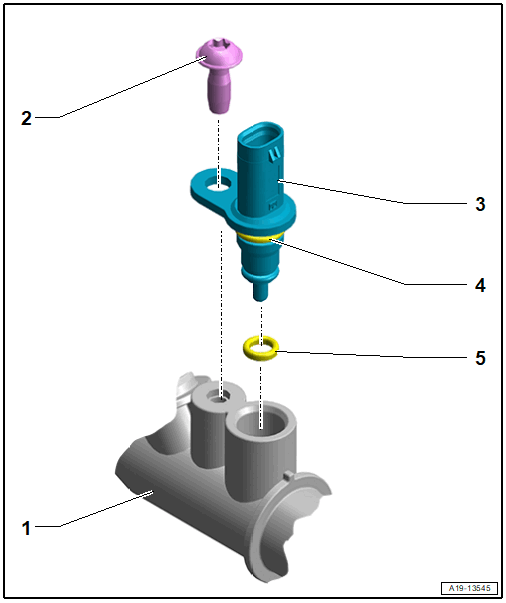

Fig 1: Exploded View Of Motor Coolant Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Connection
2. Bolt
   • 8 Nm
3. Coolant Temperature Sensor
   • High-Voltage Battery Coolant Temperature Sensor 1 -G898- in the supply
   • High-Voltage Battery Coolant Temperature Sensor 2 -G899- in the return
   • Refer to High-Voltage Battery Coolant Temperature Sensor 1 G898, Removing and Installing  .
   • Refer to High-Voltage Battery Coolant Temperature Sensor 2 G899, Removing and Installing  .
4. Support Ring
5. O-Ring
   • Replace after removing

Overview - Inserted Engine/Motor Coolant Temperature Sensor

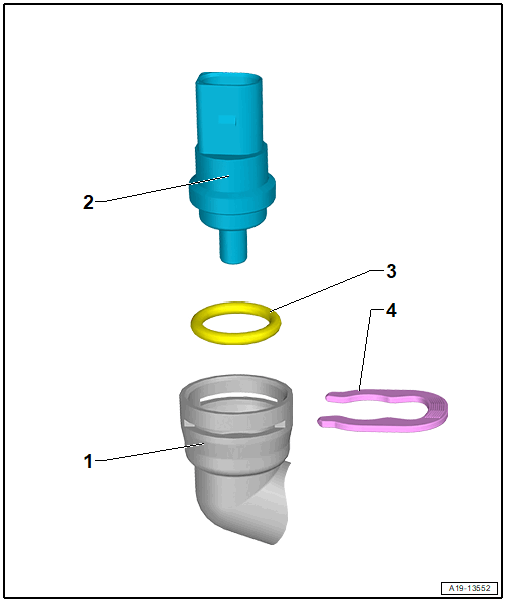

Fig 2: Exploded View Of Engine/Motor Coolant Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Connection
2. Temperature Sensor -G18-
   • Refer to Temperature Sensor G18, Removing and Installing  .
3. O-Ring
   • Replace after removing
4. Clip
