Low Temperature Circuit Coolant Pump V468, Removing And Installing: Installing

Install in reverse order of removal and note the following:

-- Connect the coolant hoses and align the installation marks.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condition

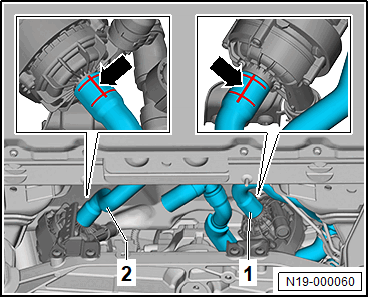

• The installation markings -arrows- on the coolant hoses -1- and -2- must face upward vertically.

-- Refer to Cooling System, Filling  .
