Refrigerant Line Between Gas Cooler And Refrigerant Shut-Off Valve 2 N640, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Install the seals and loss protection devices without oil.

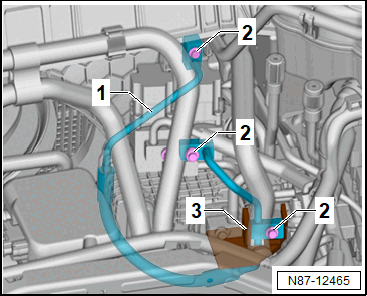

-- Insert the Counterholder:T10630  to tighten the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Perform the "open the electric activated valves for the refrigerant circuit for extracting, evacuating and filling" with Vehicle Diagnostic Tester . Refer to Diagnostic Entries .

-- Refer to the appropriate Service Information .
