Pressure Relief Valve, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

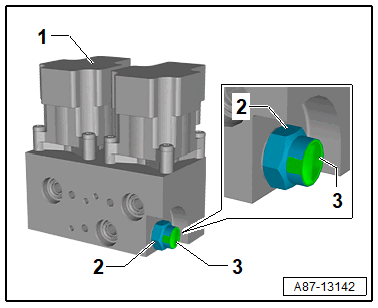

-- Check the protective film -3- on the pressure relief valve -2- for damage before installation.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condition

• Pressure relief valves may not be reinstalled with damaged protective film.

-- Install the seals and loss protection devices without oil.
