Dryer, Removing And Installing: Removing

Immediately seal off any open lines and connections with clean plugs from the Engine Bung Set:VAS 6122  .

-- Perform the "open the electric activated valves for the refrigerant circuit for extracting, evacuating and filling" with Vehicle Diagnostic Tester . Refer to Diagnostic Entries .

-- Refer to the appropriate Service Information .

-- Remove the heat pump valve unit. Refer to Heat Pump Valve Unit, Removing and Installing  .

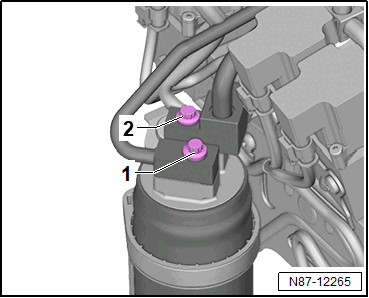

-- Remove the bolts -1- and -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

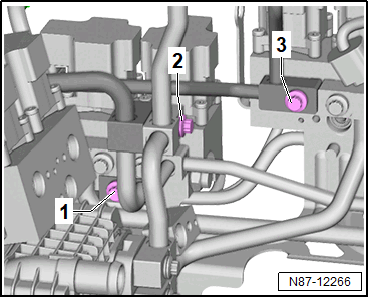

-- Remove the bolts -1-, -2- and -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

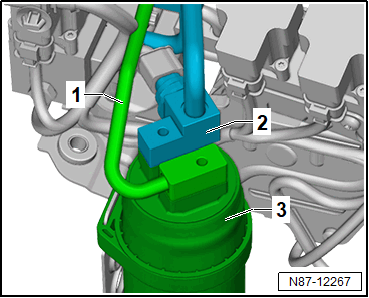

-- Remove the refrigerant lines -1- and -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

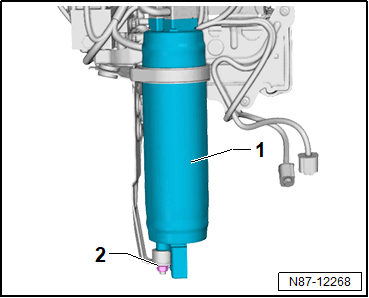

-- Remove the nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the dryer -1- upward from the retainer.
