Desiccant Bag, Removing And Installing: Removing
Immediately seal off any open lines and connections with clean plugs from the Engine Bung Set:VAS 6122 .
-- Refer to the appropriate Service Information .
-- Remove the condenser. Refer to CONDENSER/GAS COOLER, REMOVING AND INSTALLING, R1234YF or CONDENSER/GAS COOLER, REMOVING AND INSTALLING, R744 .
Danger of frostbite due to refrigerant coming out under pressure.
Frostbite on the skin and other parts of the body is possible.
- Wear safety gloves.
- Wear protective eyewear.
- Evacuate or drain refrigerant and open the refrigerant circuit immediately.
- If more than 10 minutes have elapsed since evacuating or draining the refrigerant and the refrigerant circuit was not opened, evacuate or drain the refrigerant again. Pressure develops in the refrigerant circuit due to evaporation.

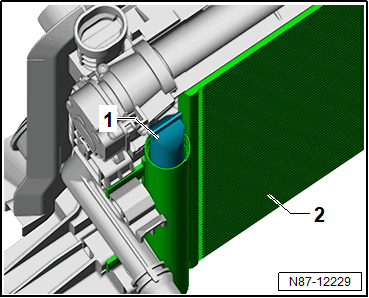

-- Remove the plug -1- from the condenser -2-.
-- Remove the desiccant bag -1- from the condenser -2-.

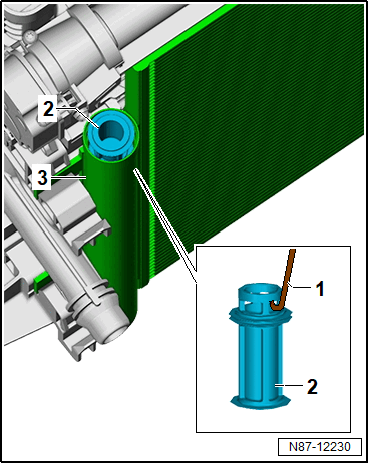

-- Pull the filter -2- out of the condenser -3- using a wire -1-.
