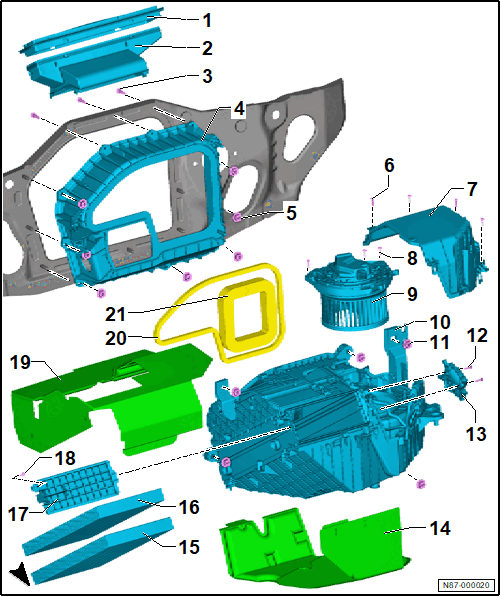

Overview - Heater And A/C Unit Air Intake Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Fresh Air Intake Cover
2. Fresh Air Intake
   • Refer to Fresh Air Intake, Removing and Installing  .
3. Bolt
   • Pay attention to the tightening sequence. Refer to Air Shroud, Removing and Installing  .
   • Quantity: 3
   • 8 Nm
4. Air Shroud
   • See: "Mount on air shroud for RHD vehicles"
   • Refer to Air Shroud, Removing and Installing  .
5. Nut
   • Pay attention to the tightening sequence. Refer to Air Shroud, Removing and Installing  .
   • Quantity: 7
   • 8 Nm
6. Bolt
   • Quantity: 4
   • 2 Nm
7. Cover
8. Bolt
   • Quantity: 3
   • 2 Nm
9. Fresh Air Blower Control Module -J126-
   • Refer to Fresh Air Blower Control Module -J126-, Removing and Installing  .
10. Heater and A/C Unit Air Intake Housing
    • Refer to Heater and A/C Unit Air Intake Housing, Removing and Installing  .
11. Nut
    • Quantity: 5
    • 4 Nm
12. Bolt
    • Refer to ACTUATORS  .
13. Actuator for Fresh and Air Recirculation Door -VX96-
    • With Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
    • With the Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor -G644-
    • Refer to Actuator for Fresh and Air Recirculation Door -VX96-, Removing and Installing  .
14. Noise Insulation
15. Dust and Pollen Filter
    • Refer to Dust and Pollen Filter, Removing and Installing  .
16. Dust and Pollen Filter
    • Depending on vehicle equipment/version
    • Refer to Dust and Pollen Filter, Removing and Installing  .
17. Cover
18. Bolt
    • Depending on vehicle equipment/version
    • 2 Nm
19. Noise Insulation
20. Seal
21. Seal

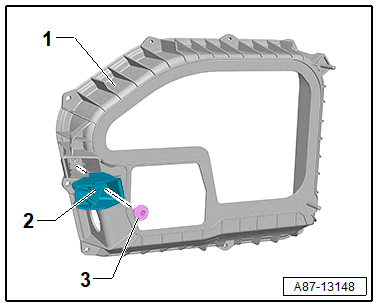

Air Shroud Mount, RHD.

Fig 1: Air Shroud Mount, RHD.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
