Heater And A/C Unit Air Intake Housing, Removing And Installing: Removing

-- Remove the fresh air intake. Refer to Fresh Air Intake, Removing and Installing .

CAUTION:

There is a risk of fatal injury due to high voltage.

Electrocution by direct contact or electric arc can cause severe bodily injury or fatal injury.

- Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energize the high-voltage system.

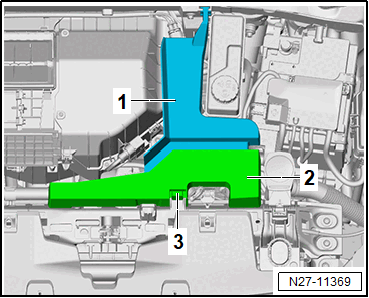

-- Release the hooks -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover -2-.

-- Remove the cover -1- from the guide.

AWD vehicles

-- Disengage the transmission ventilation hose.

Continuation for all vehicles

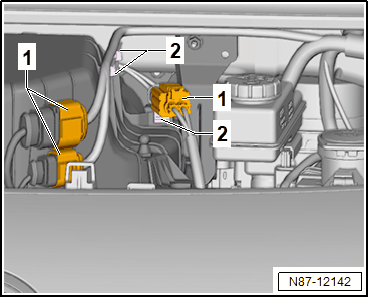

-- Disconnect the connectors -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the clamps -2-.

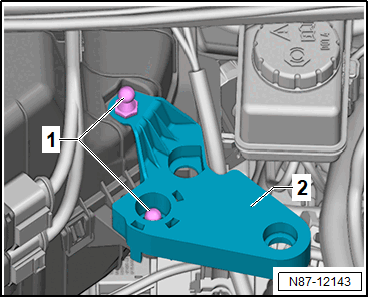

-- Remove the fasteners -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the adapter plate -2-.

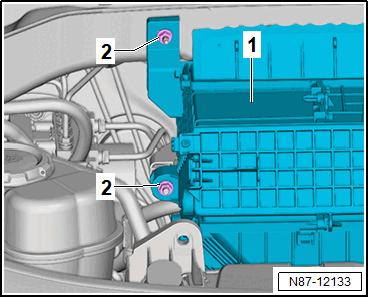

-- Remove the nuts -2- from the heater and A/C unit air intake housing -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

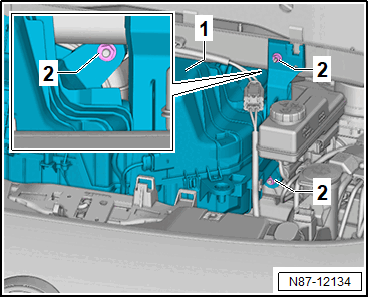

-- Remove the nuts -2- from the heater and A/C unit air intake housing -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the heater and A/C unit air intake housing -1-.
