Evaporator Temperature Sensor -G308-, Removing And Installing: Removing

-- Remove the tunnel support cover. Refer to TUNNEL SUPPORT COVER, REMOVING AND INSTALLING .

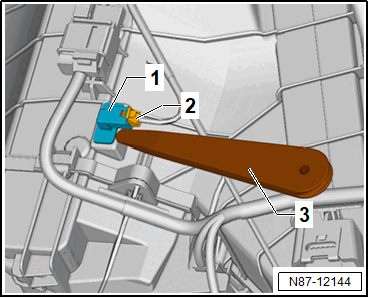

-- Disconnect the connector -2-.

GWWN87-12144Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Evaporator Temperature Sensor -G308- -1- using a commercially available plastic wedge -3-.
