Condensation Water Drain, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

Condition

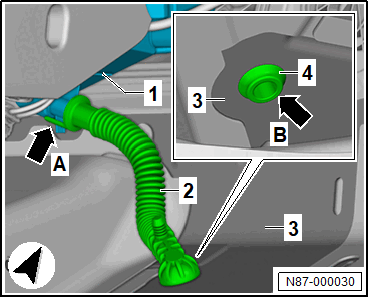

• It must be possible to attach the condensation water drain -2- to the heater and A/C unit connection -1- without having any tension on it. Pay attention to the hook -arrow A-.
• The sealing lip -4- must be seated tightly at the opening in the body -3- -arrow B-.

-- Attach the condensation water drain -2- straight.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure that the carpet does not squeeze the condensation water drain -2-.
