Rear FOOTWELL Vent, Removing And Installing: Removing

-- Remove the carpet. Refer to CARPET, REMOVING AND INSTALLING .

-- Remove the bracket for the center console. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .

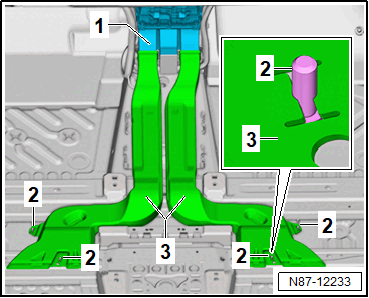

-- Detach the footwell vents -3- from the pins -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the footwell vent -3- out of the heater and A/C unit -1-.
