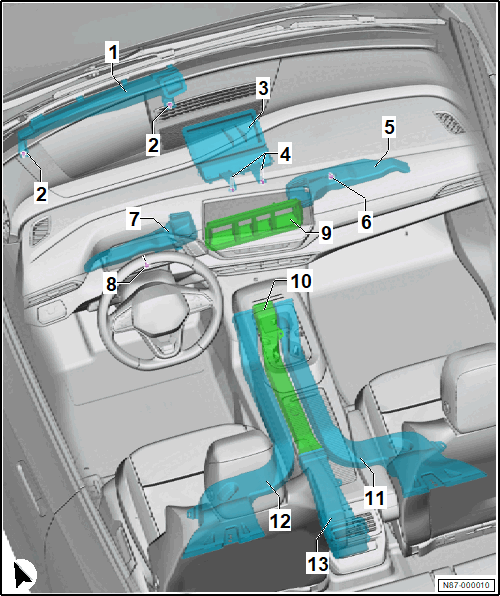

Overview - Air Routing And Air Distribution In Vehicle Interior

The overview shows a LHD vehicle as an example.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Air Duct for Front Instrument Panel
   • RHD: is a mirror image
   • Refer to FRONT INSTRUMENT PANEL AIR DUCT, REMOVING AND INSTALLING
2. Bolt
   • Quantity: 2
   • 1.5 Nm
3. Air Duct for Air Vent Defrost
   • Refer to Air Duct for Defrost Air Vent, Removing and Installing  .
4. Expanding Rivet
   • Quantity: 2
5. Front Passenger Side Footwell Vent
   • RHD: is a mirror image
   • Refer to Front Passenger Side Footwell Vent, Removing and Installing  .
6. Bolt
   • 1.5 Nm
7. Driver Side Footwell Vent
   • RHD: is a mirror image
   • Refer to Driver Side Footwell Vent, Removing and Installing  .
8. Bolt
   • 1.5 Nm
9. Instrument Panel Center Vent Air Duct
   • Refer to Center Instrument Panel Vent Air Duct, Removing and Installing  .
10. Rear Center Console Vent Air Duct
    • Front
    • Refer to Air Duct for Rear Center Console Vent, Removing and Installing  .
11. Right Rear Footwell Vent
    • Refer to Rear Footwell Vent, Removing and Installing  .
12. Left Rear Footwell Vent
    • Refer to Rear Footwell Vent, Removing and Installing  .
13. Rear Center Console Vent Air Duct
    • Refer to Air Duct for Rear Center Console Vent, Removing and Installing  .
