Front Passenger Side FOOTWELL Vent, Removing And Installing, LHD: Removing

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

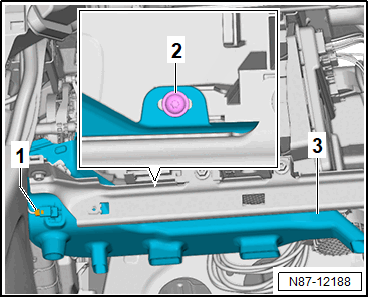

-- Disconnect the connector -1-.

GWWN87-12188Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

-- Remove the footwell vent -3- at the same time note the following:
