Driver Side FOOTWELL Vent, Removing And Installing, LHD: Removing

-- Remove the footwell cover on the driver side. Refer to DRIVER SIDE FOOTWELL COVER, REMOVING AND INSTALLING .

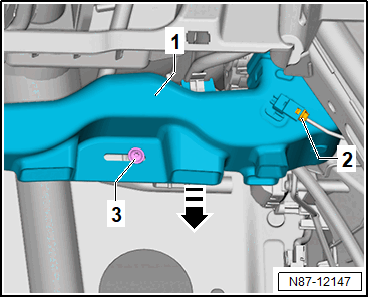

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3-.

-- Remove the footwell vent -1- in -direction of the arrow-.
